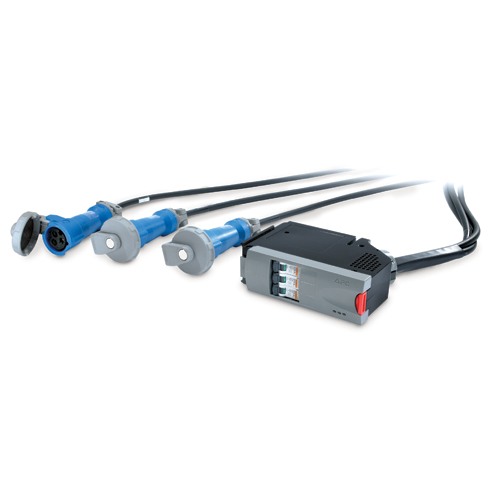

APC IT Power Distribution Module 3×1 Pole 3 Wire 20A 240V IEC309 260cm 380cm 500cm

  • Factory assembled and tested Power Distribution Modules include circuit breaker, power cord, power connection, and circuit monitoring. Auto-detection of modules…

  • Includes: Installation guide





PDM1320IEC-3P-1 Features

APC IT Power Distribution Module 3x1 Pole 3 Wire 20A 240V IEC309 260cm 380cm 500cm
Factory assembled and tested Power Distribution Modules include circuit breaker, power cord, power connection, and circuit monitoring. Auto-detection of modules by the Modular PDU minimizes installation time.
Includes: Installation guide
  • Multiple distribution options
    Superior design flexibility enables a wide range of customer requirements to be addressed.
  • System mobility
    Power distribution units can easily be relocated to accommodate a changing data center environment.

Modular Power Accessories Features & Benefits

Manageability

Quick status information LEDs

Access status information about the performance of the Power Distribution Module
Power monitoring

Measure and monitor power consumption and usage with branch circuit monitoring and output metering, which are included at no extra cost

Safety

Safety

Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection

Convenience

Global product offering

Standardization of power distribution units across all corporate locations is easy - a variety of 1-phase and 3-phase Power Distribution Modules address the unique power requirements of data centers around the world.
Toolless installation of breakers

Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required



Output

Nominal Output Voltage

240V
Maximum Total Current Draw

20

Input

Nominal Input Voltage

240V
Input frequency

60 Hz
Maximum Line Current

20A

Physical

Maximum Height

6.0inches (152MM, 15.2CM)
Maximum Width

17.0inches (432MM, 43.2CM)
Maximum Depth

16.5inches (419MM, 41.9CM)
Net Weight

8.12lbs. (3.69KG)
Shipping weight

10.12lbs. (4.6KG)
Shipping Height

6.0inches (152MM, 15.2CM)
Shipping Width

17.0inches (432MM, 43.2CM)
Shipping Depth

16.5inches (419MM, 41.9CM)
Color

Grey

Conformance

Approvals

UL Listed
Standard warranty

1 year repair or replace

Sustainable Offer Status

RoHS

Compliant
