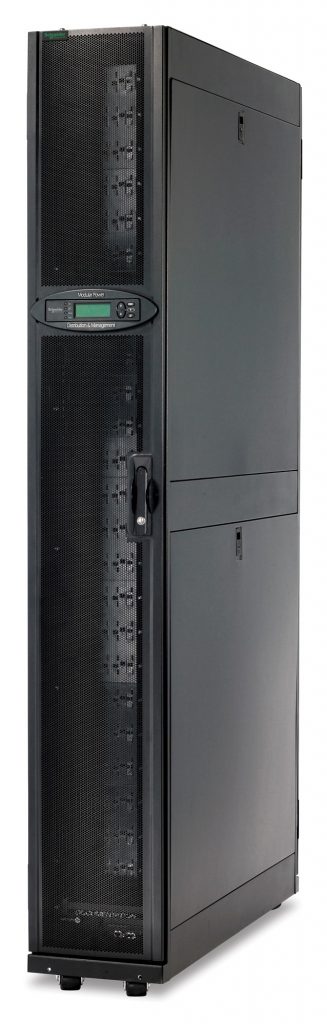

APC Modular Remote Power Panel, 144kVA, 400A, 208V, 72 Pole, 300mm

APC Modular Remote Power Panel, 144kVA, 400A, 208V, 72 Pole, 300mm

  • A fully scalable power distribution system that cost-effectively provides high levels of availability and enables the quick addition of circuits and cord-sets.

  • Includes: Installation guide

SKU: PDRDPF10U-R Kategori: , ,

PDPM144F Features

APC Modular Remote Power Panel, 144kVA, 400A, 208V, 72 Pole, 300mm
A fully scalable power distribution system that cost-effectively provides high levels of availability and enables the quick addition of circuits and cord-sets.
Includes: Installation guide

  • Built-in Web/SNMP management
    Full-featured management via a Web browser as well as comprehensive management from a Network Management System.
  • Current Monitoring
    Monitors the aggregate current draw per power distribution unit.
  • Industry-leading power density
    High-density power distribution in a sleek 300mm enclosure
  • Local and web-based monitoring
    Status available to customers both in the data center and remotely
  • Multiple distribution options
    Superior design flexibility enables a wide range of customer requirements to be addressed.
  • Network management capability
    Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet.
  • Smallest footprint
    Minimizes your real estate expenses
  • StruxureWare Data Center Expert compatible
    Enables centralized management via StruxureWare Data Center Expert.
  • System mobility
    Power distribution units can easily be relocated to accommodate a changing data center environment.

Modular Power Distribution Features & Benefits

Protection

Multiple distribution options

Superior design flexibility enables a wide range of customer requirements to be addressed.
Safety

Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection
Toolless installation of breakers

Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required

Manageability

Current Monitoring

Monitors the aggregate current draw per power distribution unit.
Network management capability

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet.

Agility

Modular design

Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
Ease of system expansion

Power Distribution Modules provide an option to expand data center power distribution capability as power demands increase.
Smallest footprint

Minimizes your real estate expenses
System mobility

Power distribution units can easily be relocated to accommodate a changing data center environment.

Output

Nominal Output Voltage

208V 3PH
Maximum Total Current Draw

400

Input

Nominal Input Voltage

208V 3PH
Input frequency

60 Hz
Acceptable Input Voltage

200-240VAC
Maximum Line Current

400A

Physical

Maximum Height

78.8inches (2002MM, 200.2CM)
Maximum Width

11.8inches (300MM, 30.0CM)
Maximum Depth

42.4inches (1077MM, 107.7CM)
Net Weight

352.0lbs. (160.0KG)
Shipping weight

401.0lbs. (182.27KG)
Shipping Height

88.5inches (2248MM, 224.8CM)
Shipping Width

33.5inches (851MM, 85.1CM)
Shipping Depth

47.5inches (1206MM, 120.6CM)

Conformance

Approvals

OSHPD, UL Listed
Standard warranty

1 year repair or replace
