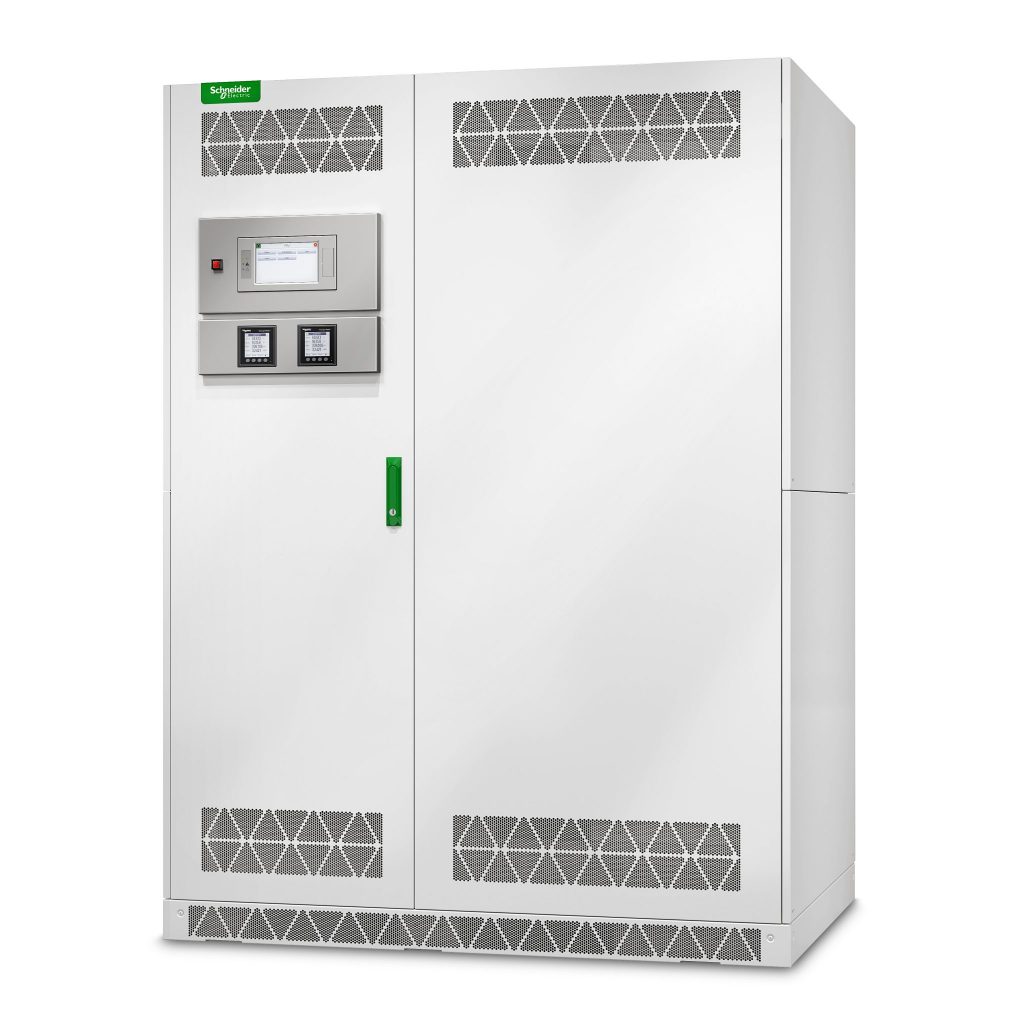

Power Management Module- 500kVA, Aluminum transformer 480V-IN 400V/208V-OUT, Configurable

Power Management Module- 500kVA, Aluminum transformer 480V-IN 400V/208V-OUT, Configurable

  • Centralized 3 phase power distribution adaptable to the needs of any size data center

  • Includes: Installation guide, Integrated network management

SKU: PMM500-ALA Kategori: , ,

PMM500-ALA Features

Power Management Module- 500kVA, Aluminum transformer 480V-IN 400V/208V-OUT, Configurable
Centralized 3 phase power distribution adaptable to the needs of any size data center
Includes: Installation guide, Integrated network management

Cabinet Power Distribution Features & Benefits

Manageability

Efficient cable management

Organizes the routing of cables, which simplifies maintenance or future expansion.
LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.
Multiple distribution options

Superior design flexibility enables a wide range of customer requirements to be addressed.

Availability

Pretested breakers

All breakers are pretested at the factory, enhancing reliability.

Serviceability

Front-access servicing

Simplifies installation and UPS maintenance while minimizing space requirements.

Output

Nominal Output Voltage

208V, 400V 3PH

Input

Nominal Input Voltage

480V 3PH
Input frequency

60 Hz
Maximum Input Current

601A

Physical

Maximum Height

80.0inches (2032MM, 203.2CM)
Maximum Width

60.0inches (1524MM, 152.4CM)
Maximum Depth

1.69inches (43MM, 4.3CM)
Net Weight

4890.0lbs. (2218.06KG)
Shipping weight

5620.0lbs. (2549.19KG)
Shipping Height

95.5inches (2426MM, 242.6CM)
Shipping Width

73.2inches (1859MM, 185.9CM)
Shipping Depth

57.1inches (1450MM, 145.0CM)
Color

White

Environmental

Operating Temperature

14 - 104 °F (-10 - 40 °C)
Operating Relative Humidity

10 - 70 %
Operating Elevation

0-6600ft (0-1980meters)
Storage Temperature

-25 to 55 °C
Storage Relative Humidity

10 - 90% n %
Storage Elevation

-500 to 25ft (@ERROR-150meters)

Conformance

Approvals

CSA C22.2 No. 60950, cULus, DOE2016 / NRCan, FCC Part 15 Class A, OSHPD, UL 891, UL 60950-1
Standard warranty

1 year repair or replace

Sustainable Offer Status

RoHS

Compliant
REACH

REACH: Contains No SVHCs
